TrenchLock™ Safety System
Patented locking keeps the piston rod secure, preventing accidental retraction under load.
Lightweight. Versatile. Built for Safety.
TrenchJack™ Hydraulic Aluminum Shoring
TrenchJack™ hydraulic aluminum shoring systems provide reliable trench protection in a lightweight, easy-to-handle design. Built for speed and safety, these pre-engineered systems are trusted by contractors who need dependable wall support for shallow or mid-depth excavations.
What Makes TrenchJack Different
TrenchJack hydraulic shoring systems are designed for quick setup, consistent pressure, and secure wall stabilization. Made from high-strength aluminum, each system can be installed from the surface—keeping crews safe while meeting OSHA trench safety standards.
This model is the ideal balance between lightweight handling and robust trench support, making it perfect for utility maintenance, service connections, and municipal infrastructure work.
Features & Benefits
Key Features and Engineering Advantages

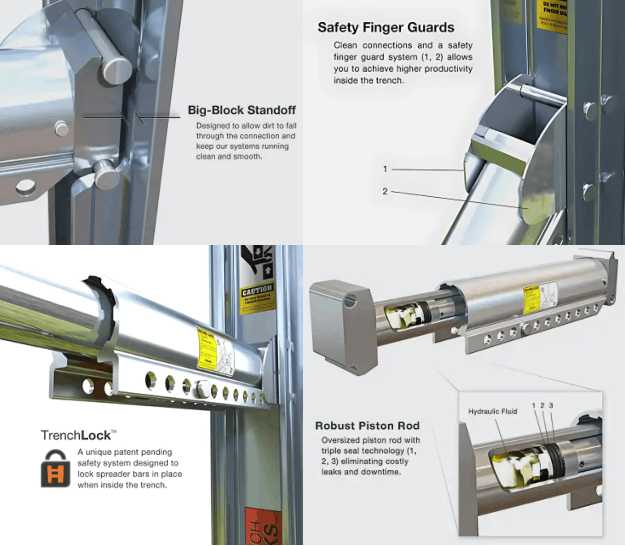

TrenchLock Safety System A patented optional feature that locks cylinders in place after pressurization. Once secured, the spreader maintains pressure and trench width, preventing hydraulic bleed-off during operation.
Big-Block Standoff Design Engineered with oversized standoff blocks that allow soil to pass freely reducing buildup, improving drainage, and preventing jamming under load.
Finger Guard System Protective guards on each spreader connection keep operators’ hands clear of pinch zones. TrenchJack is built to prioritize crew safety at every step.
Heavy-Duty Piston Rods with Triple Seals Precision-machined piston rods ensure smooth operation and long-lasting performance. The triple-seal design provides consistent pressure retention with minimal maintenance.
Lightweight Aluminum Construction Strong, rust-resistant, and easy to maneuver, TrenchJack components can be handled by small crews without heavy equipment, saving both time and labor.
Big-Block Standoff Design
Oversized spacing allows dirt to pass through, ensuring smooth, clog-free setups.
Built-In Finger Guard System
Enclosed connections reduce pinch points and protect hands during assembly.
Oversized Piston Rods with Triple Seals
Heavy-duty rods with triple-sealed fittings minimize leaks and extend service life.
HydroShore Kit Options
Available TrenchJack Kits
TrenchJack systems are available in multiple width and height configurations to fit your project’s needs. Each kit includes hydraulic cylinders, aluminum rails, pump, and hose assembly.
| Width (Min–Max) | Height | Approx. Weight | Part No. |
|---|---|---|---|
| 17–27 in | 2.0 ft | 25 lbs | TJ-1727-02.0-HD-K |
| 17–27 in | 3.5 ft | 47 lbs | TJ-1727-03.5-HD-K |
| 22–36 in | 5.0 ft | 60 lbs | TJ-2236-05.0-HD-K |
| 25–42 in | 7.0 ft | 78 lbs | TJ-2542-07.0-HD-K |
| 40–64 in | 10.0 ft | 102 lbs | TJ-4064-10.0-HD-K |
| 52–88 in | 12.0 ft | 128 lbs | TJ-5288-12.0-HD-K |
Weights are approximate and may vary depending on accessories.
Safety, Installation, & Operation Guidelines
Safe Use & Operational Best Practices
Safety Protocols:
- Engage TrenchLock (if available) before crew entry.
- Always check hydraulic integrity, inspect hoses and seals.
- Use finger guards and keep hands clear of moving parts.
- Utilize lifting lugs with certified rigging for safe system movement.
Installation & Operation Steps:
- Set up rails and cylinders from trench edges.
- Connect hydraulic hoses and gradually pressurize to working width.
- Lock system using TrenchLock or mechanical means.
- Perform alignment and safety inspections before personnel entry.
- On completion, release pressure in a controlled sequence and retract system.
Maintenance & Inspection:Regularly inspect piston seals, hoses, and structural components. Replace worn parts in line with manufacturer recommendations. Use approved replacement kits from Northeast Shoring for durability and compliance.
Applications & Use Cases
Applications Ideal for HydroJack
HydroJack excels in:
- Utility and pipeline trenching
- Municipal water, sewer, and drainage projects
- Electrical conduit, telecom, and fiber optic installation
- General excavation for small-to-medium widths
- Infrastructure repair, emergency trenching, and repair work
Gallery / Visual Display
- “HydroJack system installed for utility trench – Springfield, MA”
- “Lifting lug used to lower HydroJack into trench – Hartford, CT”
- “Corner guards reinforcing side panels on project site”
Request a Quote or Consult Our Team
Need help selecting the right HydroJack kit or understanding job conditions? Our experts can assist with custom configurations, soil assessments, and availability.
