HydroJack™ Hydraulic Shoring System
HydroJack™ is a flexible, modular hydraulic shoring system built to increase productivity and safety across diverse trench environments. Featuring robust side panels, optional locking mechanisms, and certified kits, HydroJack delivers strength without sacrificing ease of use. Each kit includes a hydraulic pump, hoses, and optional accessories to adapt to your jobsite challenges.
Feature Highlights & Engineering Innovations
H2: Feature Advantages That Set HydroJack Apart
TrenchLock Safety System (Optional) HydroJack can be upgraded with the TrenchLock locking mechanism to secure spreader bars after pressurization. Once engaged, the system holds stable, eliminating uncontrolled bleed-off while crews work inside the trench.
Big-Block Standoff Architecture Traditional small block standoffs catch soil and debris, increasing drag and resistance. HydroJack’s big-block standoff design allows particles to pass through, maintaining smooth operation and enabling efficient trench work.
Finger Guard Protection Every connection comes with a finger guard system to reduce risk of pinch injuries during setup or adjustment, enhancing operator safety in close-quarters environments.
Heavy-Duty Piston Rods with Triple Seal Design Oversized piston rods plus triple-seal engineering give HydroJack reliable pressure retention and long service life, even under demanding worksite conditions.
Heavy Lifting Lugs & Corner Guards HydroJack includes certified lifting lugs so systems can be maneuvered by machinery using proper rigging.
Steel corner guards reinforce the sidewalls, adding structural integrity to the system.
Kit Sizes & Selection Guidance
Choosing the Right HydroJack Kit
Selecting the correct kit depends on trench depth, width, soil type, and expected load. Below is a sample of available configurations; reach out to our specialists to narrow the best option for your project.
| Width Min / Max | Height | Approx. Weight* | Part Number |
|---|---|---|---|
| 17 in / 27 in | 2.0 ft | ~28 lbs | HJ-1727-02.0-HD-K |
| 17 in / 27 in | 3.5 ft | ~52 lbs | HJ-1727-03.5-HD-K |
| 22 in / 36 in | 5.0 ft | ~70 lbs | HJ-2236-05.0-HD-K |
| 25 in / 42 in | 7.0 ft | ~90 lbs | HJ-2542-07.0-HD-K |
| 40 in / 64 in | 10.0 ft | ~120 lbs | HJ-4064-10.0-HD-K |
| 52 in / 88 in | 12.0 ft | ~145 lbs | HJ-5288-12.0-HD-K |
* Approximate weight; depending on added accessories.
Accessories, Upgrades & Options
Compatible Accessories & System Upgrades
Enhance your HydroJack setup with optional add-ons:
- Locking Extension Kits – Add secure expansion beyond base width.
- Standard Extension Kits – Flexible spreaders for varied trench dimensions.
- Side Rail Kits – Bolster lateral support in wider or deeper trenches.
- Hydraulic Pump Kits – High-capacity pumps engineered for fast pressurization.
- Hydraulic Hose Kits – Reinforced hoses with quick-coupler for rapid setup.
- Insert / Removal Rod Kits – Safely manipulate spreaders without entering the trench.
- Corner Guard Kits & Panel Kits – Reinforcement options and replacement parts.
Safety, Installation, & Operation Guidelines
Safe Use & Operational Best Practices
Safety Protocols:
- Engage TrenchLock (if available) before crew entry.
- Always check hydraulic integrity, inspect hoses and seals.
- Use finger guards and keep hands clear of moving parts.
- Utilize lifting lugs with certified rigging for safe system movement.
Installation & Operation Steps:
- Set up rails and cylinders from trench edges.
- Connect hydraulic hoses and gradually pressurize to working width.
- Lock system using TrenchLock or mechanical means.
- Perform alignment and safety inspections before personnel entry.
- On completion, release pressure in a controlled sequence and retract system.
Maintenance & Inspection:Regularly inspect piston seals, hoses, and structural components. Replace worn parts in line with manufacturer recommendations. Use approved replacement kits from Northeast Shoring for durability and compliance.
Applications & Use Cases
Applications Ideal for HydroJack
HydroJack excels in:
- Utility and pipeline trenching
- Municipal water, sewer, and drainage projects
- Electrical conduit, telecom, and fiber optic installation
- General excavation for small-to-medium widths
- Infrastructure repair, emergency trenching, and repair work
Gallery / Visual Display

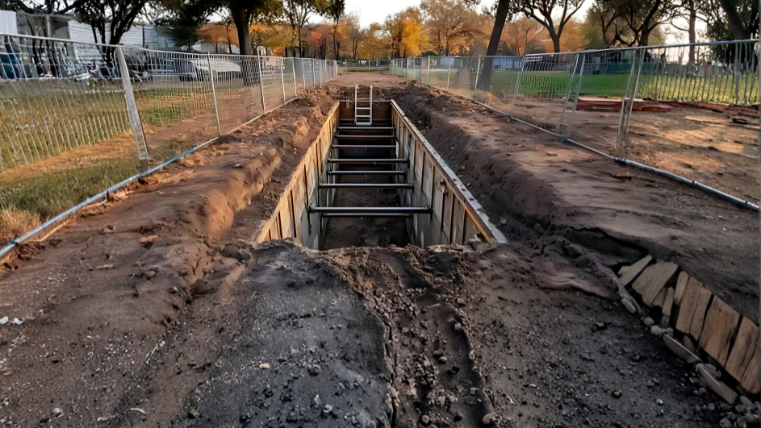

- “HydroJack system installed for utility trench – Springfield, MA”
- “Lifting lug used to lower HydroJack into trench – Hartford, CT”
- “Corner guards reinforcing side panels on project site”
Request a Quote or Consult Our Team
Need help selecting the right HydroJack kit or understanding job conditions? Our experts can assist with custom configurations, soil assessments, and availability.
